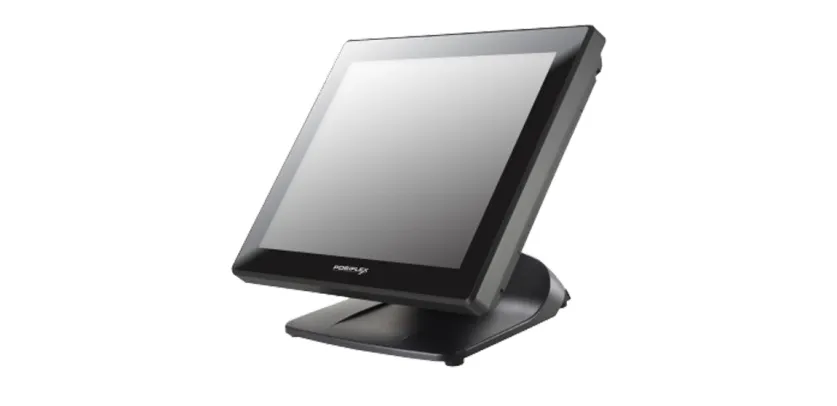

Feature
Intelligently Designed
• Equipped with an adjustable base, PS-3615 Series enables the ultimate flexibility for space-limited environments.
Expanded Capability
• By separating a full set of ports into the top of the terminal, PS-3615 Series provides extensive connections, easy accessibility, and reliable peripheral cabling.
Compact
• Equipped with Intel® Apollo Lake N3350/J3455 processors, PS-3615 Series comes with a 15” PCAP wide touchscreen and is tailored to operate in an ever-changing retail environment.

System Configuration
Processor	Intel Apollo Lake J3455
System Memory	DDR3L SO-DIMM x 1, max. 8GB
Storage Device	M.2 connector (SATA Signal Only) x 1
RAID Function	N/A
Intel vPro Support	N/A
TPM Support	N/A
Power Supply	12V/40W
OS Support	Windows 10 IoT
Display & Touch
LCD	15" TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port	4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	1, via optional conversion cable through service window
Standard USB Port	5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port	1, via optional conversion cable through service window
UPS Port	N/A
Audio	Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot	M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm)	372 x 252.7 x 320
Weight (N. W. in kg)	5.86
Environmental
Operating Condition	0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition	-20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi	M.2 WiFi/BT module
Camera	N/A
MSR	N/A
AG Glass	N/A
Attachment Options
POS Monitor	Non-touch TFT USB LCD: 7"/9.7"
Line Display	2 x 20 rear-mount VFD customer line display;
	2 x 20 rear-mount LCD customer line display;
	7" color LCD graphical line display
External UPS Pack For RT Series	N/A
Attachment	MSR; iButton; RFID; Fingerprint Sensor; Keypad
